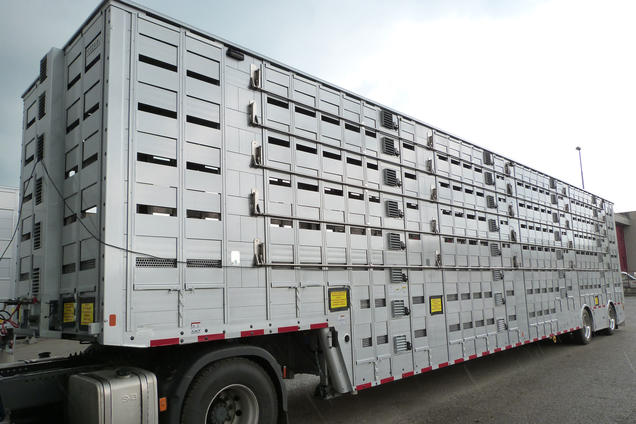

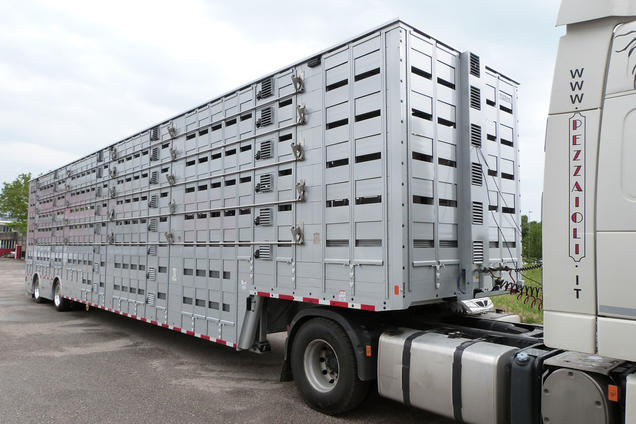

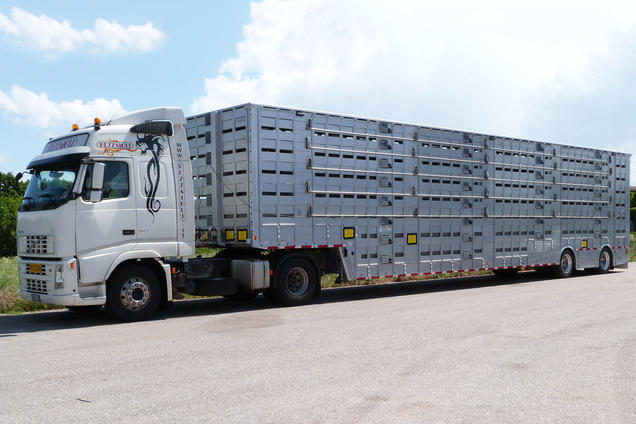

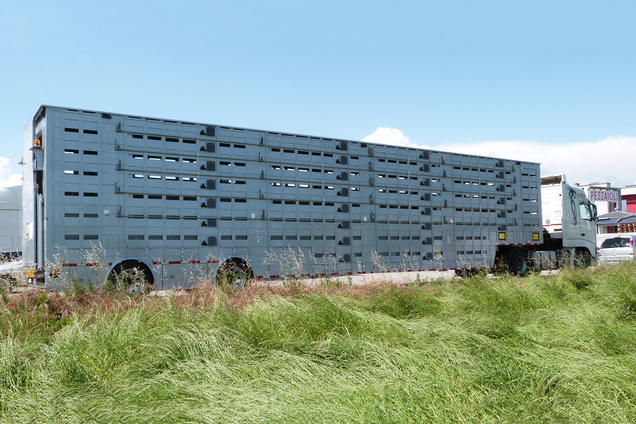

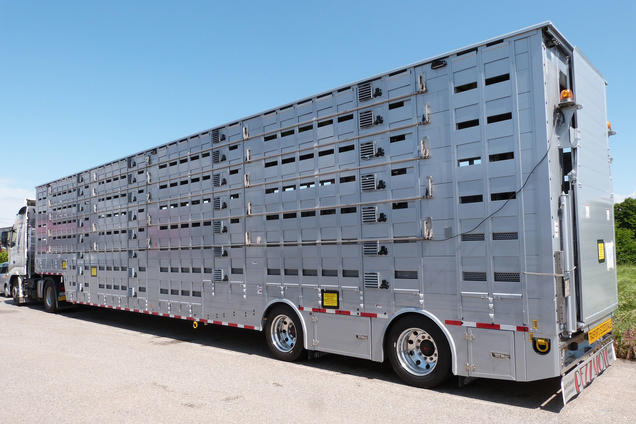

Chassis: Self-supporting anti-corrosion Aluminum structure
Axles: twin 9000 Kg capacity: 1st fix, 2nd liftable
Brakes: drum Ø 16½ x 7” (420x180 mm) and brake linings asbestos free
Braking system: pneumatic with 2 lines according to North American standard with 4 channel ABS and RSS
Parking Brakes: spring brakes with pneumatic controls
Suspensions: pneumatic type with rising-lowering valve
Wheels: disc 22.5 x 8.25 and M spigot
Tires: 255/70R22.5 twin
King Pin: 2" demountable from below
Landing legs: two speed with rocking feet

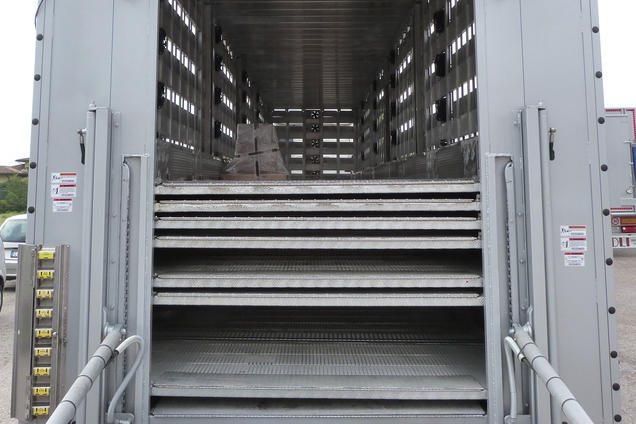

Body: box unit for ducks transport with 8 loading decks with hydraulic controls, fix roof, internal and external working lights

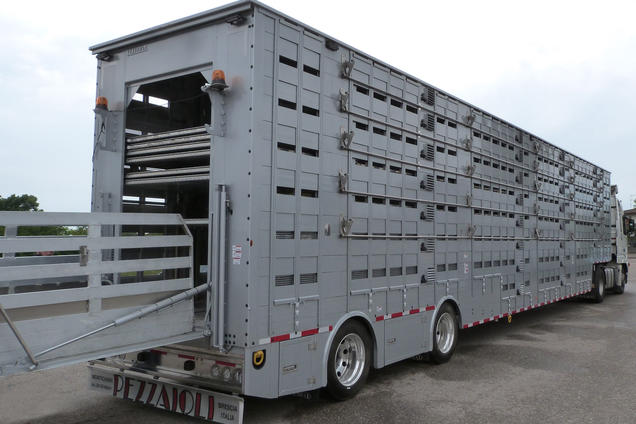

Rear ramp: rear loading ramp adjustable in height hydraulically controlled
Loading deck: free decks leaving height 16” (410 mm)
Electrohydraulic system: independent battery operated electro-hydraulic system completed with automatic safety device in accordance with Machines Directive and Work Safety Institute. (approval TUV n° 24 03 9761 002)
Partition gates: in aluminum
Side windows: closed by sliding panels
Ventilation: forced ventilation system with 65 fans for a total air flow of 31730 ft3/min (54000 m3/h)
